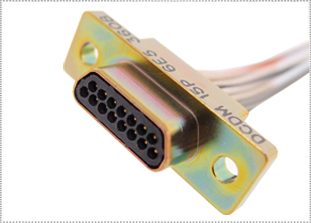

Connectors WIRED MICRO-D HIGH TEMP được HDH phân phối chính hãng tại Việt Nam.
PEI-Genesis offers Ulti-Mate Wired Hi-Temp M83513 Micro-D connectors, featuring low profile and standard profile series, high temperature rectangular connector solutions. These micro-d connectors are designed to meet the harsh environmental requirements exceeding the normal requirements of Mil-DTL-83513. These M83513 rated micro-d connectors are available in wired and circuit board configurations to operate at 200°C (393°F). Ideal for oil, gas, and geothermic wells that subject electronic instruments to extreme conditions, these M83513 micro-d connectors utilize hi-temp materials that exceed your continuous working range.
MECHANICAL
| Industrial/Commercial | x |
| Harsh Environment | x |
| Military | x |
| Wire Gauge Range (AWG) |
36 to 24 |
| Number of Circuits | 9, 15, 21, 25, 31, 37,
51, 100 |
| Sealed Against Water Jets | No |
| EMI / RFI Shielding | No |
| Style | Rectangular |
| Operating Voltage | 900 VAC |
| Current Rating (Amps) | 3 |
| Power & Signal on Same Layout | No |
| Operating Temperature |
-67°F to 392°F -55°C to 200°C |
| Submersible | No |
| Individual Wire Sealing | No |
| Cable Jacket Sealing | No |
| Type of Coupling | Screw Lock |
| Life in Mating Cycles (min.) | 500 |
| Shock Test (g’s) | 50 |
| Vibration Test (grms) | 1 |
| Susceptibility to Damage | Low |
| Shell Material | Aluminum Alloy |
| Shell Plating |
Nickel, Cadmium, Black Anodize, or Chem Film |
| Shell Color |
Silver, Yellow, or Black |
| Positive Shell Polarization | Available |
| Insert Polarization Options | No |
| User Polarization | No |
| Standards/Associated Specs. |
MIL-DTL-83513 |
| Contact Plating | Gold |
| Contact Styles | Pin / Socket |
| Crimp | |
| Solder |
x |
| Printed Circuit Solder | |
| Printed Circuit Press Fit | |
| Thermocouple | |
| Wire Wrap | |
| Co-ax | |
| Insulation Displacement or Screw | |
| Pre-Terminated | x |
| Fiber Optic | |
| High Voltage | |
| First-Mate Last-Break |
