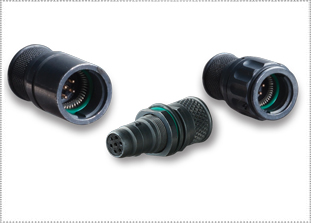

Connectors 2M được HDH phân phối chính hãng tại Việt Nam.
Amphenol 2M series micro-miniature connectors are fully-guaranteed to be intermateable with Glenair Mighty Mouse connectors. The Amphenol 2M series is a light-weight, micro-miniature circular connector option for mil-spec performance that can withstand harsh environments. Amphenol’s micro-miniature 2M series meets D38999 specifications for vibration and shielding, offering better performance than Glenair Mighty Mouse connectors. These Amphenol 2M series connectors are perfect for aviation, military communications, and UAV applications. They are quick-mating and a variety of styles are available. For full product details on Amphenol 2M series connectors, please see our specifications below.
MECHANICAL
| Industrial/Commercial | x |
| Harsh Environment | x |
| Military | x |
| Wire Gauge Range (AWG) |
20 to 12 |
| Number of Circuits | 1 to 130 |
| Sealed Against Water Jets | Available |
| EMI / RFI Shielding | Available |
| Style | Circular |
| Operating Voltage | 1,800 VAC |
| Current Rating (Amps) | 20 |
| Power & Signal on Same Layout | Available |
| Operating Temperature |
-67°F to 392°F -55°C to 200°C |
| Submersible | Available |
| Individual Wire Sealing | Available |
| Cable Jacket Sealing | Available |
| Type of Coupling | Push-Pull, Bayonet, Dual-Lead Threaded, or Triple-Lead Threaded |
| Life in Mating Cycles (min.) | 250 / 2,000 |
| Shock Test (g’s) | 300 |
| Vibration Test (grms) | 37 |
| Susceptibility to Damage | Extra Low |
| Shell Material | Aluminum Alloy |
| Shell Plating |
Black Anodized, Electroless Nickel, Cadmium, Durmalon Passivated, or Zinc-Nickel (Black or Green) |
| Shell Color | Olive Drab, Silver, or Black |
| Positive Shell Polarization | Available |
| Insert Polarization Options | Available |
| User Polarization | No |
| Standards/Associated Specs. |
– |
| Contact Plating | Gold |
| Contact Styles | Pin / Socket |
| Crimp | x |
| Solder |
x |
| Printed Circuit Solder | x |
| Printed Circuit Press Fit | |
| Thermocouple | |
| Wire Wrap | |
| Co-ax | |
| Insulation Displacement or Screw | |
| Pre-Terminated | |
| Fiber Optic | |
| High Voltage | |
| First-Mate Last-Break |
