Connectors JT-38999 Series được HDH phân phối chính hãng tại Việt Nam.

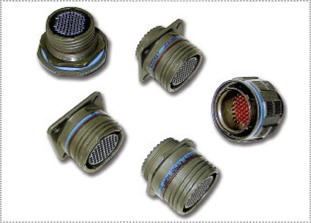

The Amphenol MIL-DTL-38999 series II JT connector offers high-density contact arrangements in a small size. They were designed for high-performance requirements, including military and commercial aviation applications. The Amphenol MIL-DTL-38999 series II JT connector is environmentally-sealed and have a wide operating temperature range. The Amphenol JT series connector is intermateable with Souriau and all MIL-DTL-38999 series connectors, and were formerly called MIL-C-38999.
FEATURES
-
High-Reliability
MIL-DTL-38999 series II – JT style connectors are used in performance aircraft that demand reliable connections in some of the most rigorous environments. The connectors must perform flawlessly under wide temperature ranges, high vibrations, and be resistant to a vast array of contaminants.
-
Low-Profile Connector Design
JT’s require a fraction of the space needed to mate most other high-performance connectors, permitting use in areas that would be impossible for other mating systems.
-
Light-Weight
Today’s aircraft designs require connectors that are very light-weight. Saving weight on the connector systems allows the aircraft to carry more fuel, maximizing its range or payload-carrying capacity.
-
High-Density Connectors
JT connectors offer up to 128 contacts per connector. Ideally-suited for the demands of today’s digital electronics that are used on fly-by wire aircraft, advanced robotics, and critical industrial equipment.
-
Operates at Extreme Temperatures
These connectors will operate in temperatures from -85°F to +392°F (-65°C to +200°C)
-
Quick-Mating Coupling Systems
Three-point bayonet coupling nuts provide fast, one-third-turn connector mating. Mating is easily verified with an audible and tactile “click” and a bayonet pin sighting hole located in the coupling nut.
-
Broad Range of Military and Commercial Accessories
Many military-standard endbells to MIL-C-85049 specifications and a wide array of cable termination styles are available. Straight, 45- and 90-degree endbells come in many styles from low-cost, standard clamp to shielded, environmentally-sealed.
-
MIL-DTL-38999 Approved
JT’s are fully-intermatable and intermountable with all other MIL-DTL-38999 series II connectors.
MECHANICAL
| Industrial/Commercial | x |
| Harsh Environment | x |
| Military | x |
| Wire Gauge Range (AWG) | 28 to 12 |
| Number of Circuits | 2 to 128 |
| Sealed Against Water Jets | Available |
| EMI / RFI Shielding | Available |
| Style | Circular |
| Operating Voltage | 2,300 VAC |
| Current Rating (Amps) | 23 |
| Power & Signal on Same Layout | Available |
| Operating Temperature |
-85°F to 392°F -65°C to 200°C |
| Submersible | Available |
| Individual Wire Sealing | Available |
| Cable Jacket Sealing | Available |
| Type of Coupling | Bayonet |
| Life in Mating Cycles (min.) | 500 |
| Shock Test (g’s) | 300 |
| Vibration Test (grms) | 43.7 |
| Susceptibility to Damage | Extra Low |
| Shell Material | Aluminum Alloy or Stainless Steel |
| Shell Plating |
Cadmium, Electroless Nickel, Anodized, Black Zinc Nickel, or Passivated |
| Shell Color |
Olive Drab, Black, or Silver |
| Positive Shell Polarization | Available |
| Insert Polarization Options | No |
| User Polarization | No |
| Standards/Associated Specs. |
MIL-DTL-38999 Series II |
| Contact Plating | Gold |
| Contact Styles | Pin / Socket |
| Crimp | x |
| Solder |
|
| Printed Circuit Solder | x |
| Printed Circuit Press Fit | |
| Thermocouple | x |
| Wire Wrap | |
| Co-ax | x |
| Insulation Displacement or Screw | |
| Pre-Terminated | |
| Fiber Optic | x |
| High Voltage | |
| First-Mate Last-Break |
