Connectors AIT/MS-5015 Series, được HDH phân phối chính hãng tại Việt Nam.

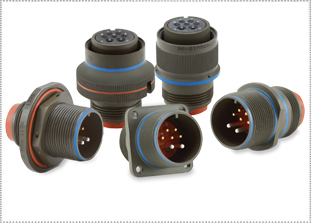

Amphenol AIT / MS connectors are cost-effective threaded circular SAE-AS50151 (MIL-DTL-5015) connectors for use in harsh environments. These Amphenol MS connectors are sealed to withstand moisture, condensation, vibration and flash-over. Over 286 contact layouts are available, in variations that allow for just power, just signal, or a mix of both contact types. Amphenol AIT / MS connectors are available in five mounting styles, nineteen shell sizes, and solder or crimp termination.
FEATURES
- Agency Approvals
SAE-AS50151 (MIL-DTL-5015) (Formerly MIL-C-5015) - Broad Temperature Range
These connectors will operate in temperatures ranging from -67°F to +257°F (-55°C to +125°C). - Environmental
These connectors will perform in the full range of operating conditions as defined in SAE-AS50151 (MIL-DTL-5015) and are recommended for conditions where vibration, moisture, pressure and/or temperature are extreme. - Resilient Insulator and Grommet
A resilient neoprene insulator and rear-seal grommet provide a liquid-tight assembly. - Rugged Shell
The rugged aluminum alloy shell and hardware are light in weight yet highly resistant to damage and corrosion. Shells are available in five different styles and in 19 sizes. - Wide Range of Wire Gauges and Current Carrying Capacity
Up to 150 amps for standard military contacts and up to 245 amps using Radsok® contacts. Wire gauges from 26 to size 0 AWG. - Wide Variety of Contacts
Machined contacts with silver or gold plating are available in sizes from 16 through 0. Solder, Crimp, PC, and thermocouple contacts are available.
MECHANICAL
| Industrial/Commercial | x |
| Harsh Environment | x |
| Military | x |
| Wire Gauge Range (AWG) | 26 to 0 |
| Number of Circuits | 1 to 85 |
| Sealed Against Water Jets | Available |
| EMI / RFI Shielding | Available |
| Style | Circular |
| Operating Voltage | 3,000 VAC |
| Current Rating (Amps) | 150/245 |
| Power & Signal on Same Layout | Available |
| Operating Temperature | -67°F to 257°F
-55°C to 125°C |
| Submersible | Available |
| Individual Wire Sealing | Available |
| Cable Jacket Sealing | Available |
| Type of Coupling | Threaded |
| Life in Mating Cycles (min.) | 100 |
| Shock Test (g’s) | 50 |
| Vibration Test (grms) | 15 |
| Susceptibility to Damage | Very Low |
| Shell Material | Aluminum Alloy |
| Shell Plating | Cadmium, Anodized, Electroless Nickel, Zinc Alloy, or Gray Zinc Nickel |
| Shell Color | Olive Drab, Silver, Black, or Gray |
| Positive Shell Polarization | Available |
| Insert Polarization Options | Available |
| User Polarization | No |
| Standards/Associated Specs. | MIL-DTL-5015 |
| Contact Plating | Silver or Gold |
| Contact Styles | Pin / Socket |
| Crimp | x |
| Solder | x |
| Printed Circuit Solder | x |
| Printed Circuit Press Fit | |
| Thermocouple | x |
| Wire Wrap | |
| Co-ax | |
| Insulation Displacement or Screw | |
| Pre-Terminated | |
| Fiber Optic | |
| High Voltage | |
| First-Mate Last-Break | x |
