Connectors AFD-26482 Series được HDH phân phối chính hãng tại Việt Nam.

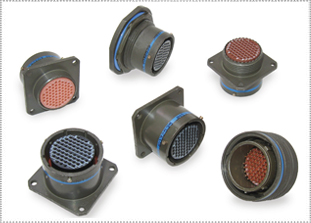

TE Connectivity DEUTSCH AFD series MIL-DTL-26482 Series II connectors have a quick-mating, three-point bayonet coupling system. TE DEUTSCH AFD series connectors are designed for harsh environments and are excellent aerospace connectors. These TE DEUTSCH connectors are mil spec to MIL-26482 and have a high-quality contact retention system. The AFD series is intermateable with Souriau connectors and all MIL-DTL-26482 series II connectors.
FEATURES
- High-reliability
- Outstanding EMI-shielding protection
- Operates at extreme temperatures
- High-density connectors
- Broad range of military and commercial accessories
- MIL-DTL-26482 qualified
MECHANICAL
| Industrial/Commercial | x |
| Harsh Environment | x |
| Military | x |
| Wire Gauge Range (AWG) | 24 to 12 |
| Number of Circuits | 3 to 61 |
| Sealed Against Water Jets | Available |
| EMI / RFI Shielding | Available |
| Style | Circular |
| Operating Voltage | 2,300 VAC |
| Current Rating (Amps) | 23 |
| Power & Signal on Same Layout | Available |
| Operating Temperature |
-67°F to 392°F -55°C to 200°C |
| Submersible | Available |
| Individual Wire Sealing | Available |
| Cable Jacket Sealing | No |
| Type of Coupling | Bayonet |
| Life in Mating Cycles (min.) | 500 |
| Shock Test (g’s) | 150 |
| Vibration Test (grms) | 20 |
| Susceptibility to Damage | Extra Low |
| Shell Material | Aluminum Alloy |
| Shell Plating |
Cadmium, Black Anodized, or Electroless Nickel |
| Shell Color |
Olive Drab, Black, or Silver |
| Positive Shell Polarization | Available |
| Insert Polarization Options | Available |
| User Polarization | No |
| Standards/Associated Specs. |
MIL-DTL-26482 Series II |
| Contact Plating | Gold |
| Contact Styles | Pin / Socket |
| Crimp | x |
| Solder |
Hermetic Only |
| Printed Circuit Solder | x |
| Printed Circuit Press Fit | |
| Thermocouple | x |
| Wire Wrap | |
| Co-ax | x |
| Insulation Displacement or Screw | |
| Pre-Terminated | |
| Fiber Optic | x |
| High Voltage | |
| First-Mate Last-Break |
